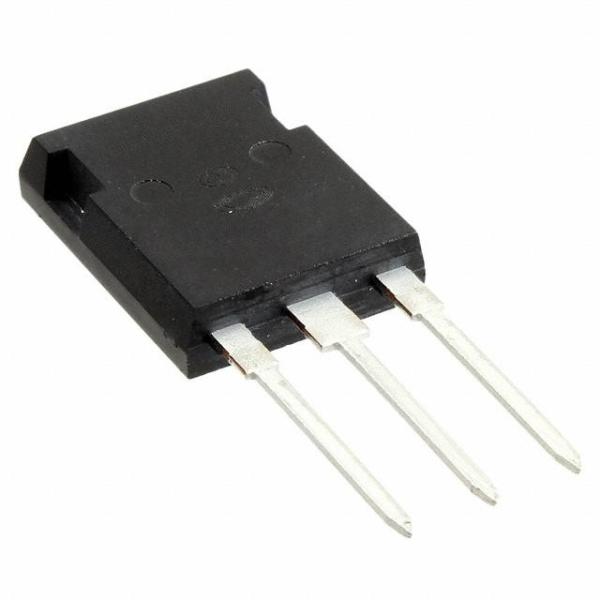

APT45GP120BG Power Module IGBT 1200V 100A Through Hole Mounting

Product Categories

KZ TECHNOLOGY (HONGKONG) LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : Original

MOQ : Negotiable

Price : Negotiable

Delivery Time : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Part Number : APT45GP120BG

Manufacturer : Microsemi Corporation

Description : IGBT 1200V 100A 625W TO247

Category : Transistors - IGBTs - Single

Family : Transistors - IGBTs - Single

Series : POWER MOS 7®

Contact Now

Part Status	Active
IGBT Type	PT
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	100A
Current - Collector Pulsed (Icm)	170A
Vce(on) (Max) @ Vge, Ic	3.9V @ 15V, 45A
Power - Max	625W
Switching Energy	900µJ (on), 904µJ (off)
Input Type	Standard
Gate Charge	185nC
Td (on/off) @ 25°C	18ns/102ns
Test Condition	600V, 45A, 5 Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247 [B]
Shipment	UPS/EMS/DHL/FedEx Express.
Condtion	New original factory.

Detection

APT45GP120BG Power Module IGBT 1200V 100A Through Hole Mounting
