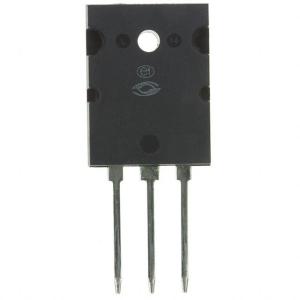

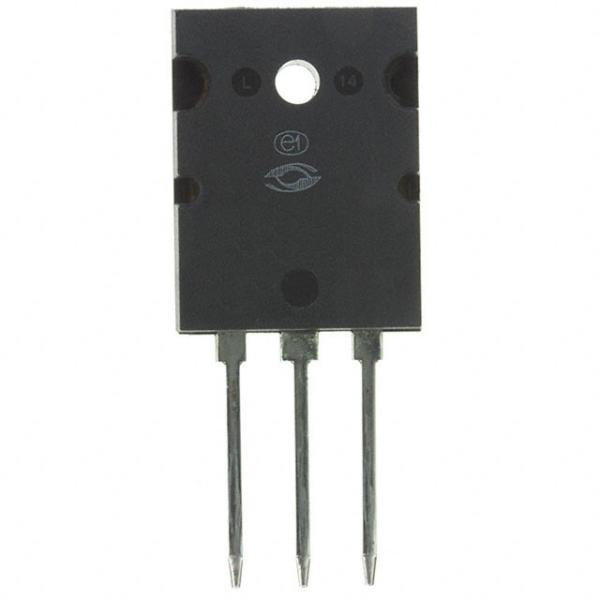

APT100GN60LDQ4G Standard IGBT Modules 600V 229A 625W TO264 New original factory 100GN60

Name: APT100GN60LDQ4G Standard IGBT Modules 600V 229A 625W TO264 New original factory 100GN60
Brand: Microsemi Corporation
Price: 1 USD

Quality APT100GN60LDQ4G Standard IGBT Modules 600V 229A 625W TO264 New original factory 100GN60 wholesale

Place of Origin : Original

MOQ : Negotiable

Price : Negotiable

Delivery Time : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Brand Name : Microsemi Corporation

Model Number : APT100GN60LDQ4G

Part Number : APT100GN60LDQ4G

Manufacturer : Microsemi Corporation

Description : IGBT 600V 229A 625W TO264

Category : Transistors - IGBTs - Single

Family : Transistors - IGBTs - Single

Name : Standard IGBT Modules

Contact Now

APT100GN60LDQ4G IGBT Power Module Transistors IGBTs Single

APT100GN60LDQ4G Specifications

Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	229A
Current - Collector Pulsed (Icm)	300A
Vce(on) (Max) @ Vge, Ic	1.85V @ 15V, 100A
Power - Max	625W
Switching Energy	4.75mJ (on), 2.675mJ (off)
Input Type	Standard
Gate Charge	600nC
Td (on/off) @ 25°C	31ns/310ns
Test Condition	400V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-264-3, TO-264AA
Supplier Device Package	TO-264 [L]
Shipment	UPS/EMS/DHL/FedEx Express.
Condtion	New original factory.

APT100GN60LDQ4G Packaging
